FILTERK E7 Series Replacement Domnick Hunter Compressed Filter

Replace to Hankison precision filter element series

Hankison precision filter element

Product name:Hankison filter element

Hankison filter cartridge Grade Description

9 Grade—Hankison separation filter cartridge

Suitable for removing large amounts of liquid and 3 microns in size (5 ppm w / w maximum residual oil content)

Two-stage filtration:

Level 1: Two stainless steel tubes for 10 micron mechanical separation

Level 2: Deep fiber media removes 3 microns of solid and liquid particles

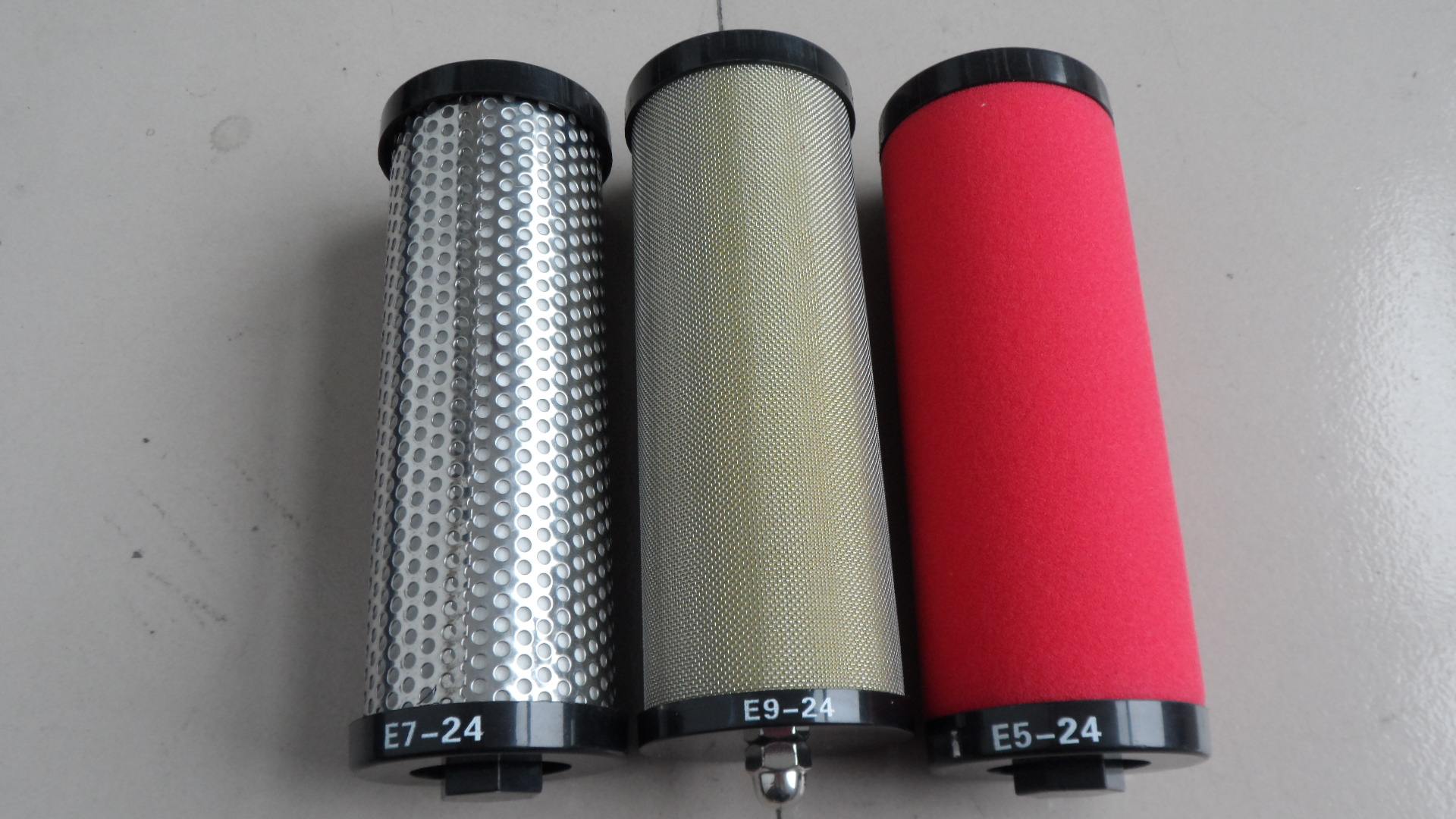

Filter cartridge models:

E9-12,E9-16,E9-20,E9-24,E9-28,E9-32,E9-36,E9-40,E9-44,E9-48

7 Grade—Hankison Universal Gas Pipeline Filter Cartridge

Suitable for filtering liquid water and oil. Can be removed as small as 1 micron solid particles (1.0 ppm w/w maximum residual oil content)

Two-stage filtration:

Level 1: Fiber media and media filter alternating layer, filter out larger particles

Level 2: Multi-layer epoxy resin bonded mixed fiber media, coalescence oil mist and filter solid particles

Filter cartridge models:

E7-12,E7-16,E7-20,E7-24,E7-28,E7-32,E7-36,E7-40,E7-44,E7-48

5 Grade—Hankison High efficiency oil removal filter cartridge

Suitable for coalescence of small water vapor and oil mist; can filter as small as 0.01 micron solid particles (0.01 ppm w / w residual oil content)

Two-stage filtration:

Level 1: Multilayer fiber media and media filters, filter out larger particles, pre-filter before air enters level 2 filtration

Level 2: Multilayer Adhesive Mixed Fiber Media, filter out small aggregates

Outer film closed foam sleeve

Filter cartridge models:

E5-12,E5-16,E5-20,E5-24,E5-28,E5-32,E5-36,E5-40,E5-44,E5-48

3 Grade—Hankison Ultra-efficient degreasing filter cartridge

Suitable for coalescence of small water vapor and oil mist; can filter as small as 0.01 micron solid particles (0.01 ppm w / w residual oil content)

Two-stage filtration:

Level 1: Coated foam packs for pre-filtration and air dispersion

Level 2: Multilayer matrix mixed fiber media, filter out very small aggregates

Outer film closed foam sleeve

Filter cartridge models:

E3-12,E3-16,E3-20,E3-24,E3-28,E3-32,E3-36,E3-40,E3-44E3-48

1 Grade—Hankison Oil vapor filter cartridge

It is suitable for the removal of oil vapor and hydrocarbon vapors which are normally absorbable from activated charcoal. It can remove solid particles as little as 0.01 microns (0.003 ppm w / w residual oil)

Two-stage filtration:

Level 1: very fine active toner stability layer, can filter out the vast majority of oil vapor

Level 2: Multilayer fiber media, bonded micro-fine activated toner, can filter out residual oil vapor

Multilayer fine media to prevent contaminants from wandering

External coating closed foam sleeve to prevent fiber wandering

Under the rated operating conditions, the design life is 1,000 hours

Filter cartridge models:

E1-12,E1-16,E1-20,E1-24,E1-28,E1-32,E1-36,E1-40,E1-44,E1-48

Performance

1. High porosity, good air permeability, low resistance, the use of low pressure;

2. Into a folded shape, the filter area, large amount of pollutants;

3. High temperature, corrosion resistance, suitable for high viscosity liquid filtration;

4. The regeneration performance is good, by chemical cleaning, high temperature and ultrasonic cleaning can be used repeatedly;

5. All stainless steel structure, wide chemical compatibility;
