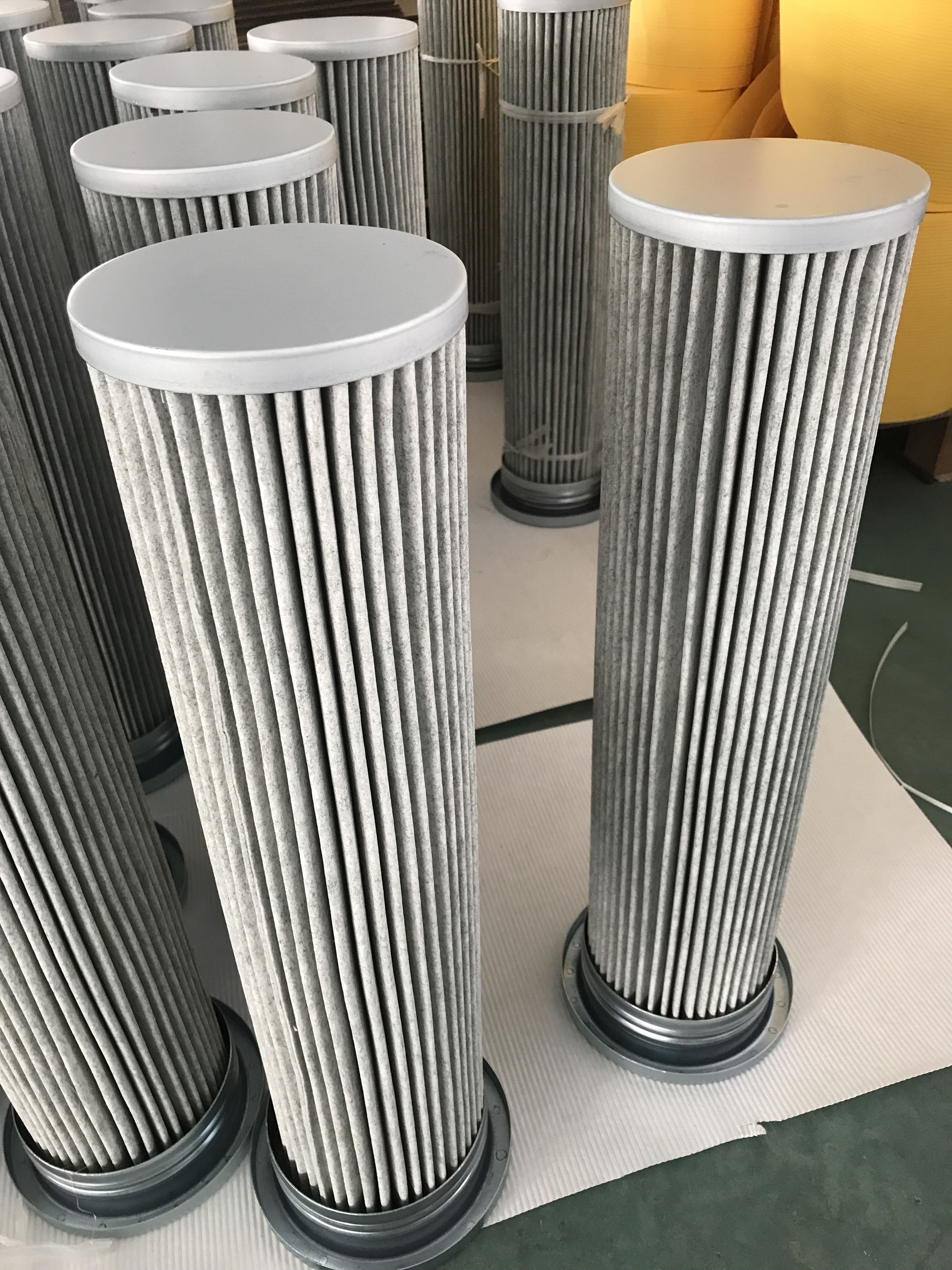

Metal Top/Bottom Pleated Bag Filters for Industrial Dust Collector

We supply industrial filter cartridges for all dust collector types ranging from silo-top collectors, horizontally mounted cartridge collectors, pleated bag collectors, vertically mounted cartridge collectors, flat cell filter collector. We also supply the filter cartridges for Centrifugal Air Compressors. We provide replacement filters suitable for , Camfil,WAM,BHA,Ingersoll Rand and other dust collectors.In addition, we offer customized filter solutions and manufacture exclusive cartridge design for OEM.

Product Descriptions:

Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.

Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.

This increased filter area causes the air-to-media ratio to decrease when the airflow stays the same, dramatically increasing filtration efficiency while operating at significantly lower differential pressures. Pleated bag filters are shorter than standard fabric bags which allows for larger drop out area and less opportunity for bag abrasion.

Many installation methods to meet all the working conditions, Available in a variety of configurations for top-load, bottom-load and oval styles with multiple filter media options including ePTFE (expanded polytetrafluoruethylene) and spunbond polyester.High temperature media and configurations also available.

Features:

(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.

(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.

(3) Offers excellent dust release Incorporate design according to requirements Various installation options available, easy to install and save time.(4) Airtight gasket accessories available Applications in many temperatures conditions.

End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.

Gasket: Professional sealing obturator elastic neoprene.

Specifications:

More Filter Materials are Available:

• More filter material you can choose
• 100% cellulose (H&V material)
• 80% cellulose+20%polyester (H&V material)
• 80% cellulose+20%polyester Flame retardant (H&V material)
• Polyester(white,black for choose)
• Polyester+Flame retardant
• Polyester+oil,water resistant
• Polyester+Anti static
• Polyester+PTFE membrane+Anti static
• Polyester+PTFE membrane
• Nano-web
• Nano-web Flame retardant

Welcome you to visit our factory.

We are one proressional industrial filter cartridges and elements manufacturer with over 20 years experience.

Main products:

• Dust filters、dust cartridges、powder filters、sterilization filters、odor eliminating filters deodorization filter and dust collection filters used in for industrial gases/gas、industrial dust、coating/painting equipment and environmental protection equipment.
• Filter elements for industrial oil ,fluid filtration,hydraulic and lubrication system, high precision oil filter equipment. Make non-standard filter elements, pipeline filter elements, imported filter cartridges localized transformation.
• Air filter cartridges for air compressors, generator sets, fans, etc., oil filter cartridges, oil and gas separation cartridges, oil filter cartridges, diesel filter cartridges and various filters.
• Air filter cartridges for large machine groups, gas turbines and ships. Engine oil filter, oil-water separator filter, oil separator filter, etc.
• Non-standard filter design, development and production of various machinery equipment.
• Filter cartridges for high-efficiency and mufti-function high-precision oil filter equipment and other various oil filter equipment.
• Primary, medium and high efficiency filters for HVAC system, fresh air replenishing machines, etc.
• Gas filter of the gas pipeline city gate stations ,pipeline transmission and distribution coal gas filters.
• Oil-water separation filters for Large machine tools、Universal lathe and CNC lathes.
• Oil filter elements,dust filters and gas purification filters of various piping systems.

Our company has a complete process, such as owning the machining, stamping, surface treatment, filter assembly and other workshops, technical and quality inspection and other quality management departments and advanced production lines, relying on strong technical force and high-quality skilled workers, with German, American HV, Japan TORAY companies' high-quality filter paper and other imported filter materials, with exquisite technology, advanced equipment, improved testing methods, advanced information management system to meet the needs of users of various filter cartridges.

Our products are now widely used in the field of metallurgy, petroleum, chemicals, electricity, coal, mining, pharmaceuticals, shipbuilding, food, construction machinery,energy and other industries.
